OVERVIEW:

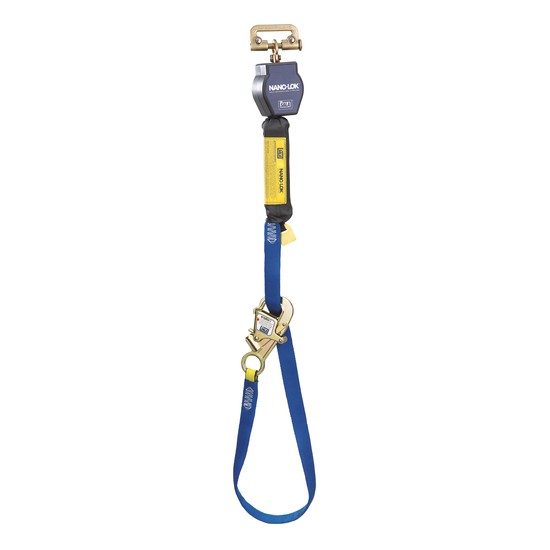

Nano-Lok™ is ergonomically designed for ease-of-use and is ideal for direct connection to most harnesses. The extremely compact and lightweight design is virtually unnoticeable on your back, staying out of the worker’s way and making it ideal as a lanyard replacement. Whether your application requires single or twin leg configurations, mounting to an overhead anchor or for connection directly to harness, there are more than 30 models to choose from to suit almost any application. Nano-Lok™ locks quickly—stopping a fall within inches—providing more protection at low heights. In addition, tension is always kept on the lifeline, which reduces dragging, snapping and trip falls. Both features are key safety improvements.

PRODUCT HIGHLIGHTS:

• Built-in connector for single-leg SRL direct attachment to harness
• 9 ft. (2.7m) 3/4" (19mm) Dyneema® fiber and polyester web lifeline
• Tie-back wear layer web design
• Tie-back self-locking hook on lifeline
• Extremely compact, lightweight design
• Tough and impact resistant thermoplastic housing
• Swiveling anchorage loop
• Quick activating speed sensing brake system
• High capacity external energy absorber and impact indicator
• i-Safe™ equipped
• Wide variety of configurations available

SPECIFICATIONS:

• Capacity - 420 lbs. (190 kg)
• Brand - DBI-SALA®
• Sub Brand - Nano-Lok™
• Size - 9 ft. (2.7 m)
• Velocity Ship - Yes
• iSafe Equipped - Yes
• Lifeline Length - 9 ft. (2.7 m)
• Lifeline Hook - Zinc Plated Steel
• Housing - Nylon Thermoplastic
• Lifeline - 3/4" (19mm) wide Dynema Polyester with 1-3/16" (30mm) Nylon Tubular Web
• Model - 3101366
• Physical Dimensions - 56.50x3.50x2.00 (in)
• Physical Weight - 2.80 lbs (1.3kg)
• Product Styles - Single Lifeline
• Product Types - Harness Mounted Tie-Back
• Housing Type - Thermoplastic
• Lifeline Type - Web
• Mounting Type - Direct to Harness Back
• Weight Group - Less than 5 lbs. (2.3 kg)
• Standards - OSHA 1926.502, Capital Safety Gen. Mfg. Req.
