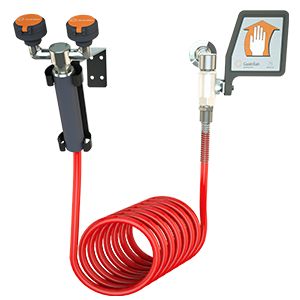

Guardian Eyewash/Drench Hose Unit, Wall Mounted, 12 Coiled Hose, Ball Valve with Flag Handle (#G5014)

Application:  Dual purpose eyewash/drench hose with ball valve and flag handle for wall mounting. Unit meets the provisions of ANSI Z358.1-2014 as both an eyewash and a drench hose. Unit may be left in the mounting bracket for use as a fixed eyewash, leaving user’s hands free. Alternatively, unit may be removed for use as a drench hose to rinse any part of user’s eyes, face or body. 12’ nylon retractable hose coils to eliminate trip hazard.

Spray Head Assembly:  Two GS-Plus™ spray heads mounted side-by-side. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve:  1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals.

Hose:  12' reinforced nylon retractable coiled hose. 180 PSI maximum working pressure.

Mounting:  Bracket with spring clips to hold unit on wall. Clips assure that spray heads face forward at all times.

Supply:  3/8" NPT female inlet.

Sign:  ANSI-compliant identification sign.

Quality Assurance:  Unit is completely assembled and water tested prior to shipment.
