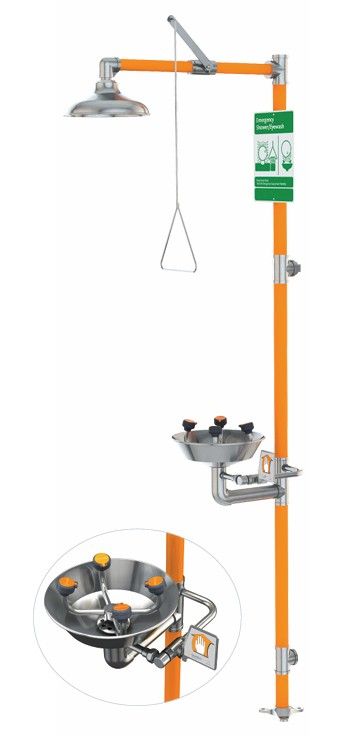

Guardian Safety Station with WideArea Eye/Face Wash, All-Stainless Steel Construction (#G1994)

Application:  All-stainless steel combination WideArea™ eye/face wash and shower safety station. Stainless steel construction is ideal for highly corrosive environments and cleanroom applications. Eye/Face wash features four GS-Plus™ spray-type outlet heads that deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face.

Shower Head:  10" diameter stainless steel with 20 GPM flow control.

Shower Valve:  1" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and PTFE seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.

Spray Head Assembly:  Four GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from water flow.

Eye/Face Wash Bowl:  11-1/8" diameter stainless steel.

Eye/Face Wash Valve:  1/2" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and PTFE seals.

Pipe And Fittings:  Schedule 40 Type 304 brushed stainless steel. Furnished with orange polyethylene pipe covers for high visibility and corrosion resistance.

Supply:  1-1/4" NPT female top or side inlet.

Waste:  1-1/4” NPT female outlet. Outlet can be positioned at either 8-1/4” or 19-3/8” above finished floor by reversing lower pipe nipples.

Sign:  ANSI-compliant identification sign.

Quality Assurance:  Valve and spray head assemblies are factory assembled and water tested prior to shipment.
